Shuttering plywood is vital in construction, prized for its strength, water resistance, and reusability. It enables precise, high-quality concrete structures by providing reliable formwork, ensuring both structural integrity and aesthetic appeal. Essential for both large commercial and residential projects, it is key to achieving efficient, successful concrete work.

Technical Specifications

Thickness: 18mm (±0.5mm tolerance)

Core: Hardwood/Eucalyptus/Poplar (or Film-Faced)

Glue: WBP (Phenolic)

Density: ~650-750kg/m³

Moisture Content: 8-12%

Edge Sealing: Optional (bitumen or lacquer-coated edges)

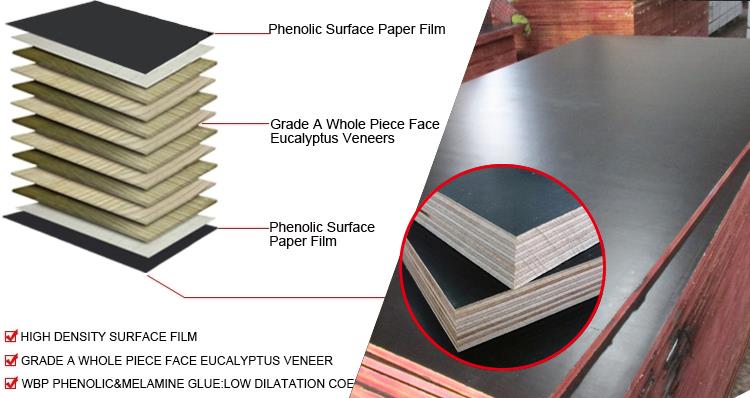

Structure

Film faced plywood is structural plywood coated with a phenolic or melamine resin film on one or both sides.

Surface: Phenolic film (brown/black) or melamine (light).

Core: Multi-layered hardwood veneers with waterproof WBP glue.

Thickness: 12mm, 15mm, 18mm, 21mm (common for formwork).

Key Features

✅ High Strength & Durability – Made from hardwood or film-faced core for superior load-bearing capacity.
✅ Waterproof Glue (WBP) – Weather- and boil-proof phenolic resin glue resists delamination.
✅ Smooth Surface – Reduces concrete adhesion for easy stripping and clean finishes.
✅ Reusable – Robust construction allows multiple reuses (up to 10-15 cycles with proper care).
✅ Standard Sizes – 1220x2440mm (4'x8') or customizable as per requirement.
✅ Certified – Complies with international standards like EN 636, BS 5268, or FSC (optional).

Applications

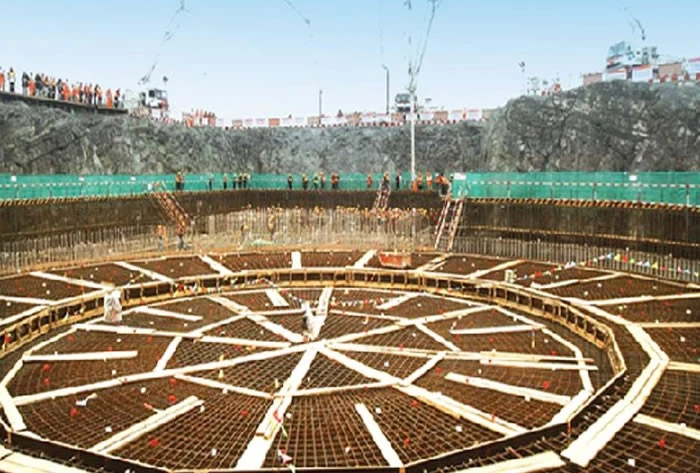

Concrete formwork for high-rise buildings, bridges, tunnels

Temporary structures & scaffolding boards

Industrial flooring & wall panels

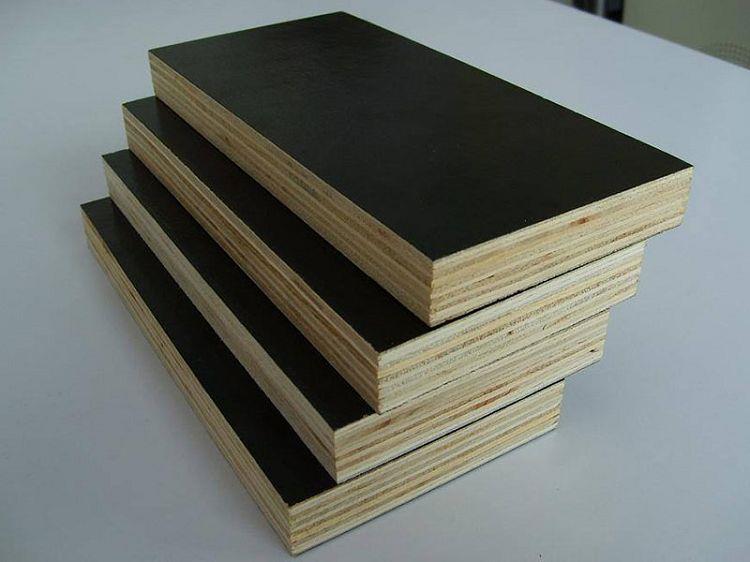

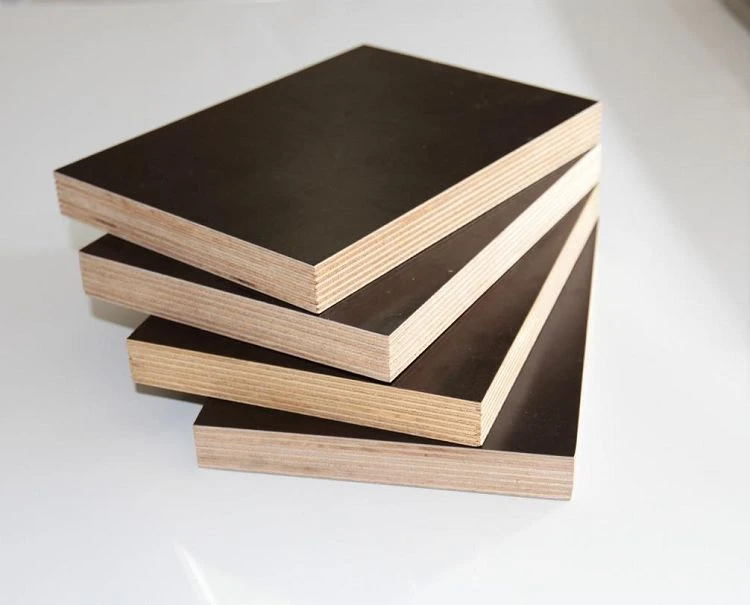

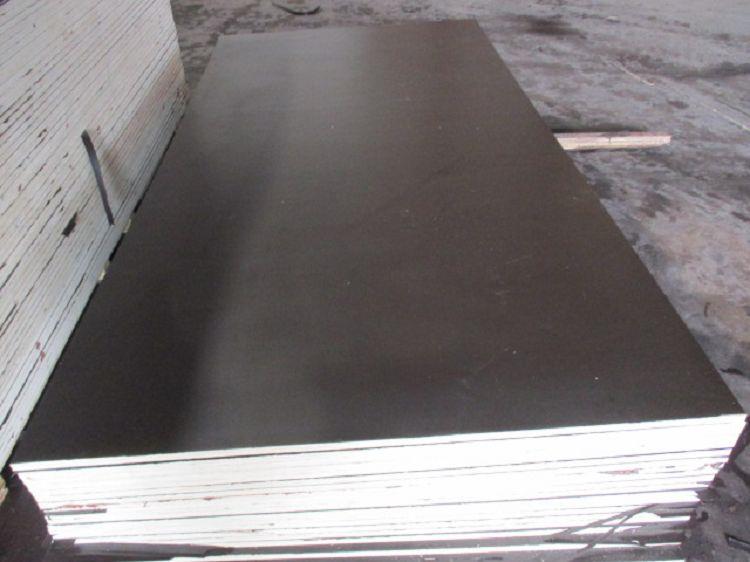

Products Images
