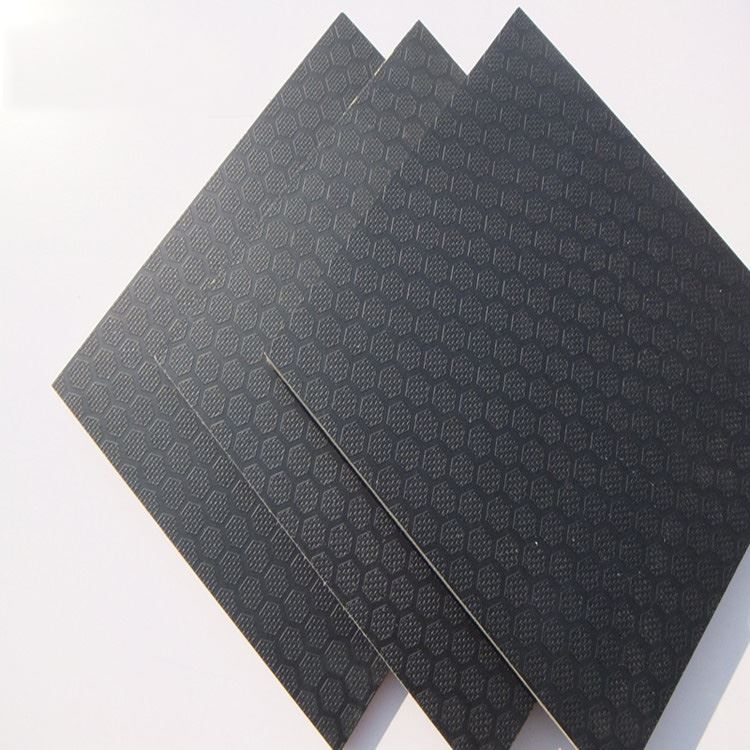

Film Faced plywood (1)

Film faced plywood is mainly made up of eucalyptus plywood,poplar plywood or eucalyptus and poplar plywood,it is economic and practical for the construction concrete pouring ,for it could be the face panel for any formwork system,for example,stell fram formwrok systerm,single side formwork system,timber beam formwork system,steel props formwork system,scaffolding formwork system etc.

Film faced plywood,shuttering panel formwork board Specification

Name	Film Faced Plywood
Core	Poplar; hardwood; Eucalyptus; Meranti; Combi core
Thickness	2mm-40mm
Size	1220X2440mm, 1250x2500mm
Glue	MR, Melamine, WBP
Formaldehyde emission:	E0, E1, E2
Tolerance Thickness	+/-0.5mm
Mositure:	<12%
Modeling:	1 times
Grade:	AA/AA, AA/BB, BB/BB, BB/CC, CC/CC GRADE
Packing:	Standard export pallet packing Inner packed by 0.2mm plastic bag Outer packed by carton or plywood, then steel tape for strength
Usage:	Concrete formworks(main usage);truck/boat floor;transport industry&flooring;construction board;subway';waterproof packing materials,etc
MOQ:	1X40'HQ
Supply Capacity:	30000pieces/month
Delivery time	Within 15-20 days after we received your deposit
Payment:	T/T, LC to be negotiatable

What we can provide?

film faced plywood, Marine Plywood,Marine plywood for concrete formwork,construction board,shuttering board,shuttering plywood,formwork plywood,brown film faced plywood,black film faced plywood,yellow film faced plywood,red film faced plywood.

Maintenance

Good maintenance and repair work is very important to ensure the function ,extend the use time and save the cost.

1.Any parts will be contact with concrete, should be well coated by mold release agents, The surface of the panels should be totally clean after using the mold release agents.

2.It's very necessary to avoid collision during the usage and stock.

3. Don't not use sledgehammer and strong shake when it's difficult to disassemble the panel. Better use crowbar to pry it by the bottom of panel. To avoid the gap when joint two panel, could use some sponge to prevent any leakage or any other items.

4. The removed parts should put into the tool box in time when disassemble the panel , and screw nut etc should prevent rust by using lubrication.

5.Before the panels will be used for other new project, the parts should be kept well and change the broken one, at the same time, better get more spare parts. If there is any defects on the panel, repair them in time.

Product Images

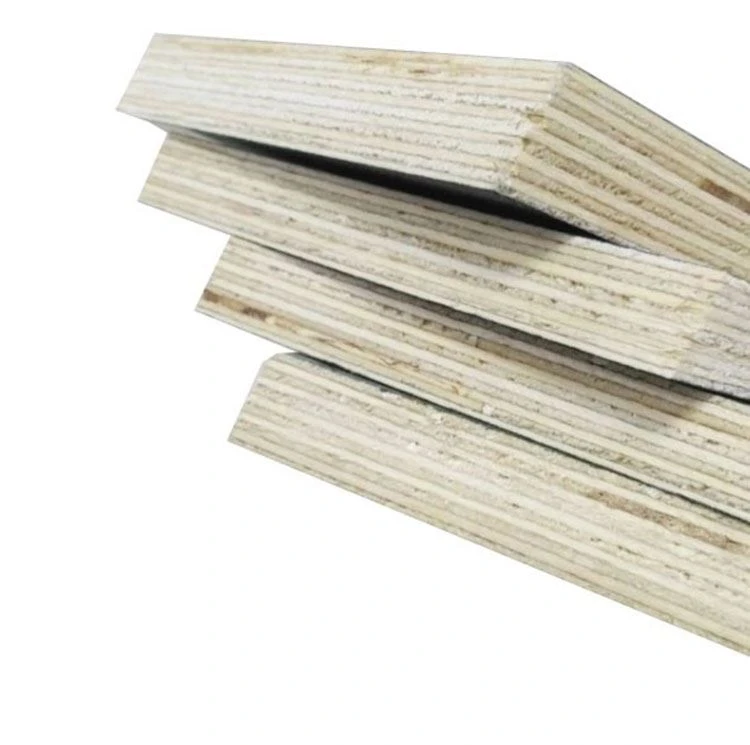

film faced plywood (14)
