Film faced plywood is a kind of plywood with two sides coated with wearable and water proof film. The film is adhesive impregnated paper, which are different from melamine paper overlay, PVC, MDO and HDO. The function of the film is to protect the inside wood from moisture, water, weather and extend the plywood’s service life.
Specification :
1)Thickness: 9mm ,12mm,15mm,18mm,21mm,24mm.
2)Size: 915x1830mm,1220x2440mm,610X2440MM,1200x2400mm,1250x2500mm,
3)Core: Poplar core,Hardwood core,Birch core,Combi core,renewed core etc.
4)Film: black film 240g/sqm, brown film 120g/sqm, yellow film plywood, green film plywood, red film plywood etc.
Wiremeshed anti-sliperry plywood, W/F plywood, one side smooth another side wiremeshed anti-slip.
5)Glue: Phenolic WBP glue; Melamine WBP glue; MR glue
6)Edges Treatment : firslty sealed by phenolic waterproof glue, then painted by water-proof paint in black color or brown color or as requested
Packing: covered by plastic bag, fastened by steel belts with pallets, strong export packing.
Size: | 915*1830mm, 1220mm*2440mm ，1250mm*2500mm | |
Thickness: | 3/8inch(8.5-10.2mm) | 9mm = 37.325sheets/cbm |
1/2inch(12-12.7mm) | 12mm = 27.99sheets/cbm | |
5/8inch(15-16mm) | 15mm = 22.395sheets/cbm | |
3/4inch(18-19mm) | 18mm = 18.66sheets/cbm | |
Core: | poplar,hardwood,combi,pine,recycled core | |
Glue: | WBP, MR | |
Face/back: | Black/Brown/ Red film | |
Grade: | A/A, B/B,C/C | |
Moisture: | <12% | |
Thickness tolerance: | Thickness tolerance | +/-0.5mm |
Length/width tolerance | +/-0.2mm | |
Physical parameters: | density:>550-650G/cbm | |
modulus of rupture: > 30Mpa | ||
modulus of elasticity :>6000Mpa | ||
Quantity:
| 20'GP | 8Pallets |
40'GP | 16Pallets | |
40'HQ | 18Pallet | |
Knowledge of the glue:
What’s MR glue-which is commonly used for plywood / film faced plywood / blockboard
What is WBP glue – which is commonly used for WBP plywood / film faced plywood
Application
Film faced plywood can be used in harsh and outside environment: shuttering plywood, formwork plywood, concrete formwork, floorboard, vehicle building.

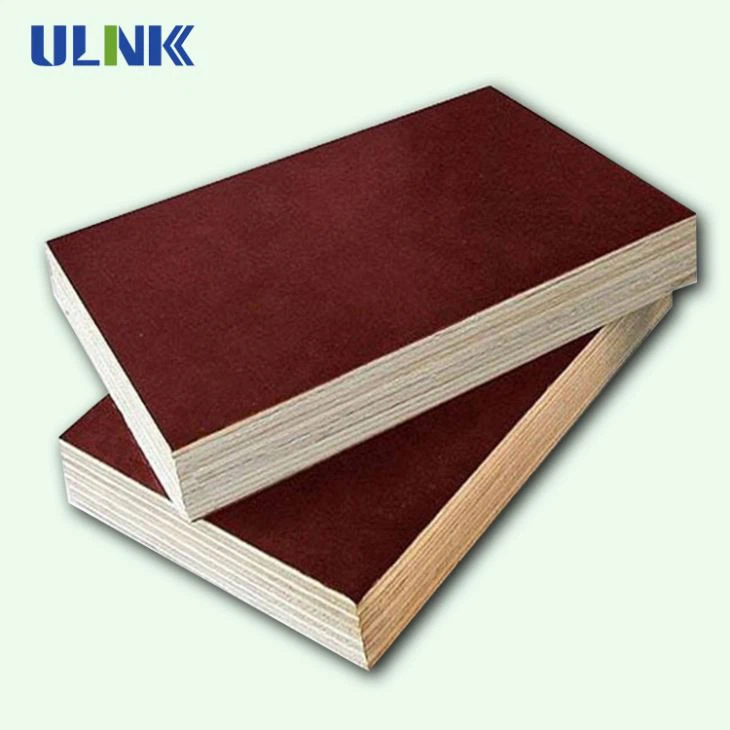

Product Images
