Film faced plywood is mainly used for construction . So film faced plywood is also called shuttering film faced plywood, concrete form, shuttering concrete form .
| Size | 1.small sizes:915x2135mm,1525x1525mm 2.standard sizes:1220X2440mm, 1250x2500mm 3.big size:1500x3000mm,(accept customization) |
| Thickness | From 12mm to 21mm |
| Material | Peeing veneer;poplar;combi;eucalyptus;birch;pine;meranti; othe hardwood;or finger joint recycled core;
|
| Face&back | phenoli paper film;dynea;enso;local;smooth;ultra brighten; antislip(wire mesh,anti-skid) |
| Glue | phenolic formaldehyde adhesive(PF,phenolic WBP glue,phenolic glue) melamine WBP glue(MUF,MF,melamine glue) |
| Emission content of formaldehyde | E0(PF lue);E1/E2(MUF) |
| Usage | construction;construction formwork;template,mold;shuttering;decking;special packing |
| Layers | finger jointed(5,7ply),9mm(5,7,9ply),12mm(7,9Ply) 15mm(7,9,11ply),18mm(7,9,11,13,15ply) |
| Moisture content | 8%-12% |
Advantages
_ The concrete surface of The formwork is completely smooth, no need to plaster.
_ Lightweight easy to move, installation reduces labor costs, shorten The time of construction.
_ Re-use many times, high economic efficiency.
_ High strength, meet The safety in construction.
_ Easy to cut, easy to use
The Uses of Film-Faced Plywood
Film-faced plywood is an exterior birch plywood used in building and construction projects. It has a special film coating on its surface made from phenol or melamine on either or both sides which gives the plywood a higher resistance to moisture, abrasion, chemical degradation and fungal attack compared to ordinary plywood.
Industrial Development
An interesting application of film-faced plywood is during the construction and maintenance of dams. The plywood is useful for forming level molding boards and girder molding boards, which need to be resistant to strong forces, large amounts of fast-flowing water and yet still maintain their structural integrity and shape. There is a choice of thicknesses available, depending on requirements, from 12mm, 15mm and 18mm .

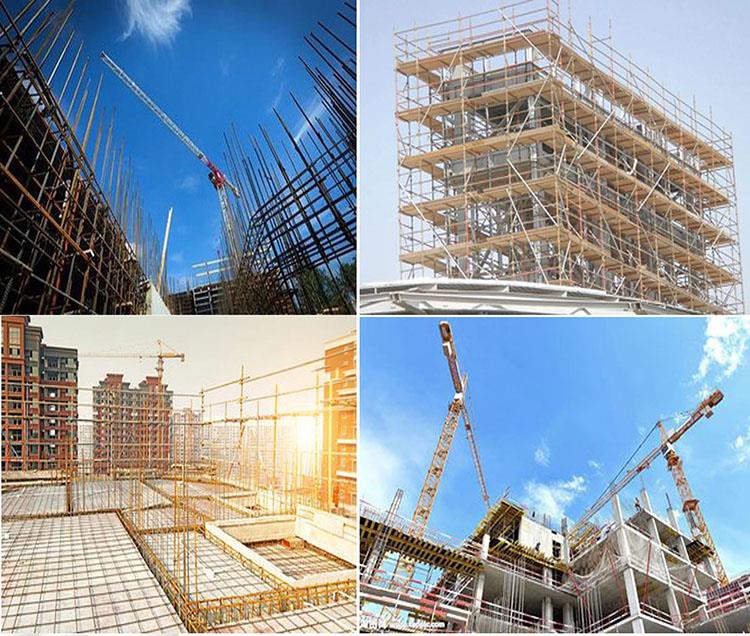

Building and Construction
Because of its increased stability and resistance to moisture, ultraviolet radiation and corrosive chemicals, film-faced plywood is ideal for outdoor applications such as the external surfaces of new buildings. The extra film layer and acrylic varnished edges of this type of plywood make it more durable and less able to distort when used outdoors in harsh weather and adverse conditions. Buildings in direct sunlight are less prone to wear and tear if they are made from film-faced plywood, at least as part of the overall structure.
Domestic Applications
Film-faced plywood remains strong and geometrically sound during several successive mechanical treatments, which means it can be put through the different stages of furniture making, for instance, without warping or bowing and undergoing the common effects of mechanical stress. Added together with its other properties, including water resistance, anti-slip and flexibility, it is clear why this type of plywood suits the furniture industry. According to the blog See See Plywood, film-faced plywood is also referred to as "WBP" or water-boiled proof plywood, which can be boiled in water for up to 20 hours without delamination, meaning the loss of its melamine laminated surface.
Product Images
