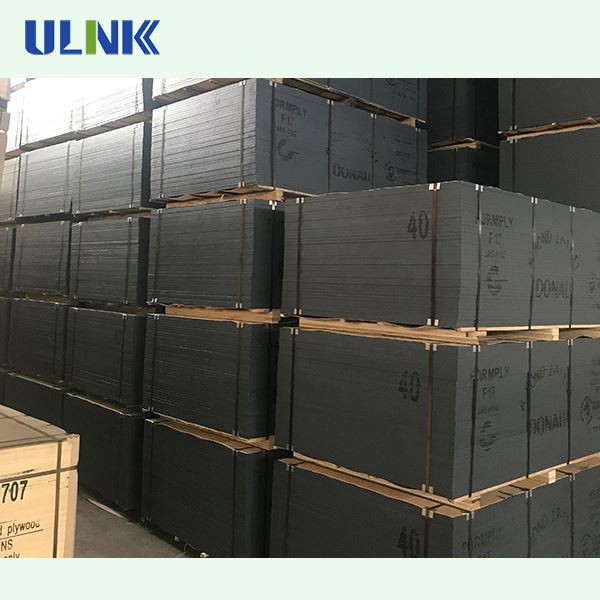

17mm F17 Standard Formwork Concrete Dynea Film Faced Plywood

Formwork plywood, otherwise known as formply, is a high quality plywood consisting on a hardwood veneers bonded together and finished with a high density overlay (HDO) phenolic resin, black in colour and providing a smooth surface. The HDO provides smooth surface, protecting the hardwood veneer surface and is ideal for both structural and non -structural applications, especially for concrete pouring.

Specification:

Dimensions: 1800mm x 1200mm
Thickness: 17mm
Grade: F17
Surface finish: Class 2 off-form finish on first pour when used in conjunction with good site and formwork practices and AS 3610
Bond type: Melamine Fortified Urea Formaldehyde Resin (MUF)-B Bond
Standard: AS 6669 – 2007 – Plywood – Formwork

Applications:

Conventional & system formwork

Heavy civil engineering

Mining applications

Jumpforms

DecksPrecast

Tilt-up panels

General Multipurpose
