Film faced plywood is also called as "marine plywood", "shutering plywood", "concrete form plwood", “construction plywood", etc. It is a material used in the shuttering process, which occurs when pouring concrete into molds.The shuttering plywood can be constructed in such a way that it forms a mold which is water resistant and will not stick to the concrete itself.
Product Name | Anti-slip film faced plywood |
F/B | Brown anti-slip film, black anti-slip film , red anti-slip film |
Grade | first grade / AA grade |
Core | Poplar, combi, Eucalyptus, birch |
Glue | Melamine/WBP/MR |
Thickness | 8mm-21mm |
Specification | 1220X2440mm, 1250X2500mm |
Moisture Content | 8-14% |
Package | Seaworthy packing |
Certificate | ISO9001, CE |
MQQ | 1X20GP |
Price terms | EXW, FOB, CNF, CIF |
Payment | T/T, 100% irrevocable L/C |
Delivery time | Usually 15 days after receipt of the original L/C or the 30% advanced payment |
| Usages: | Can be widely used for building concrete, etc |
No | Property | Unit | Test Standard | Value of Test | Result | |
1 | Moisture content | % | EN322 | 8-12 | Check out | |
2 | Density | Kg/m3 | EN322 | 560 | Check out | |
3 | Bonding quality | Bonding quality | Mpa | EN314 | Max:1.72 Min:0.85 | Check out |
Damage rate | % | GB/T17656-1999 | 60% | |||
4 | Bending modules of elasticity | Longitudinal | Mpa
Map |
EN310 | 6800 | Check out |
| Lateral | 5920 | |||||
5 | Bending strength (N/mm) | Longitudinal | 63 | Check out | ||
| Lateral | 48 | |||||
6 | Cycle Life | About 12-25 repeated using times according projects by formwork application. | ||||

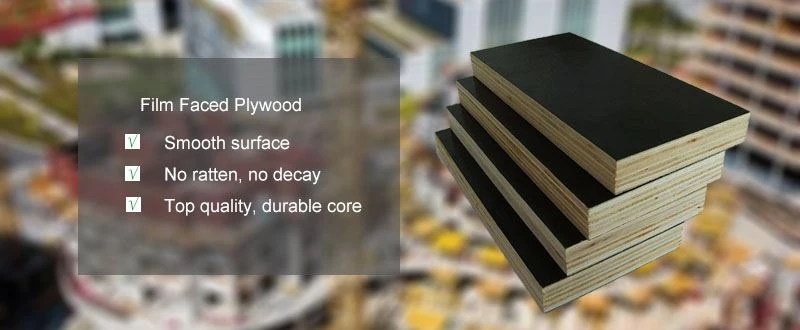

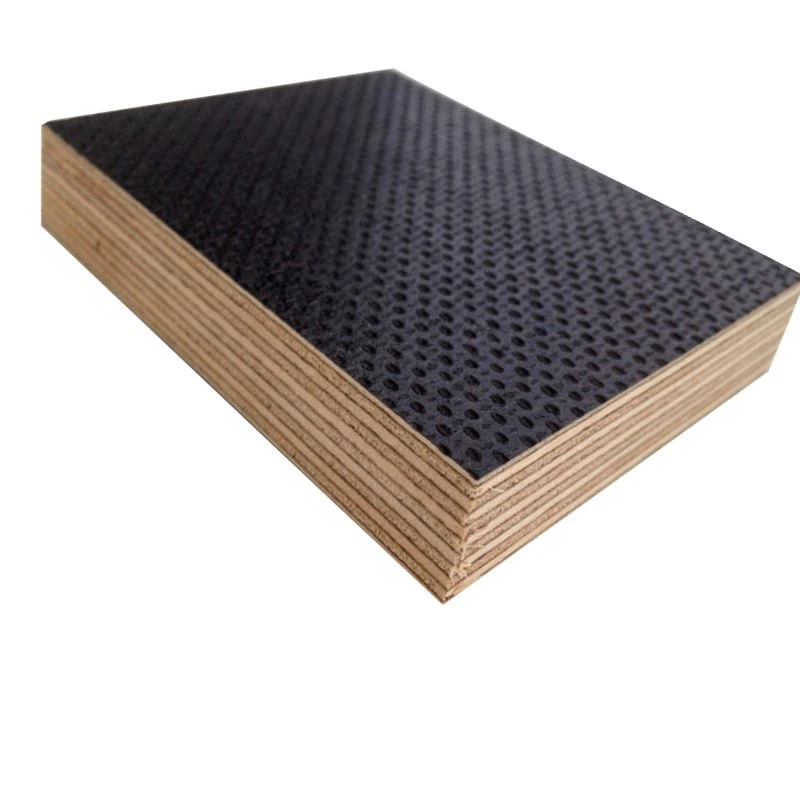

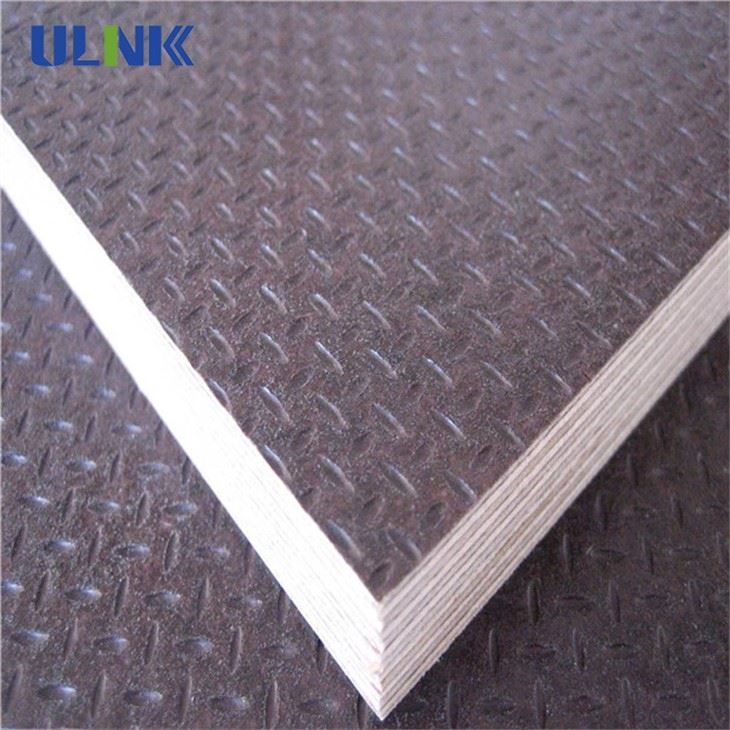

Product Images
