| Product | Film Faced Plywood | Moisture | 8-12% |
| Size | 1220x2440, 1250x2500 | Bonding Strength | >=0.7Mpa |
| Thickness | 6mm,9mm,10mm,12mm,15mm,16mm,17mm,18mm,20mm,21mm,25mm Ect. | Abrasion | <=0.1G.100R |
| Glue | WBP, MELAMINE, E1, E2 | Impulsion | 40KJ/M2 |
| Density | Popar Core >580KG/CBM, Hardwood Core>630KG/CBM | Modulus Of Elasticity | >=5000Mpa |
| Film Color | Black, Brown, Dark Brown, Red | Bending Strenth | >=40Mpa |
| Density Of Film | 120g/M2, 135g/M2, 150g/M2, 180g/M2, 220g/M2, 240g/M2 | Warp Degree | <=0.1% |
| Finish Of Film | Mirror, High Glossy, Glossy, Matt, Wire-Mesh, Anti-Slip | Thickness Tolerance | 0.5MM |
| Core | Poplar, Combi, Eucaplytus, Birch, Hardwood | Expansion Rate Of Thickness | <=8% |
| Cycle Usage Times | One Time Hot Press >7times, Two Time Hot Press Melamine Glue >12times, Two Time Hot Press WBP Glue>20times | Usage | Construction, Truck/Container Flooring, Packing |
Grade : F/F , F/W , W/W ,
Glue type : Phenol-formaldehyde (WBP), Melamine (Urea-melamine-formaldehyde)
Film Weight : 120 g/m² – 400 rotations according to Taber test (EN 438-2)
220 g/m² – 750 rotations according to Taber test (EN 438-2)
Film Color : DBO – Dark Brown Opaque.Black,Yellow,Red, Different colors and film weights are available on request.
Density : 500 – 700 kg/m³
Birch plywood
1. wery high multi-use ability
2. wery high resistance to water
3. high quality surface of the concrete
4. easy to clean and cut
Poplar plywood
1. low price
2. high resistance to water
3. high multi-use ability (about 8 times),
4. high quality surface of the concrete
5. easy to clean and cut
Nominal thickness, mm | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 35 | 40 |
Number of plies | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 25 | 29 |
Average actual | 6,2 | 9,2 | 12,0 | 14,9 | 17,7 | 20,7 | 23,5 | 26,5 | 29,4 | 35,0 | 39,4 |
Lower limit, mm | 5,9 | 8,8 | 11,5 | 14,5 | 17,3 | 20,3 | 23,1 | 26,1 | 28,7 | 34,1 | 39,1 |
Upper limit, mm | 6,9 | 9,5 | 12,5 | 15,3 | 18,1 | 20,9 | 23,7 | 26,8 | 29,9 | 35,4 | 41.2 |

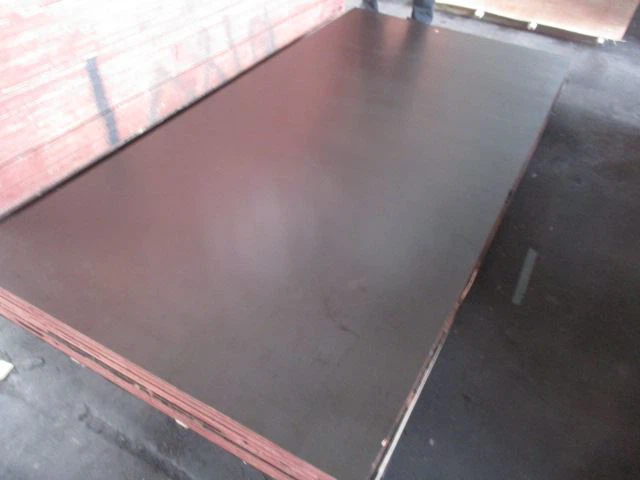

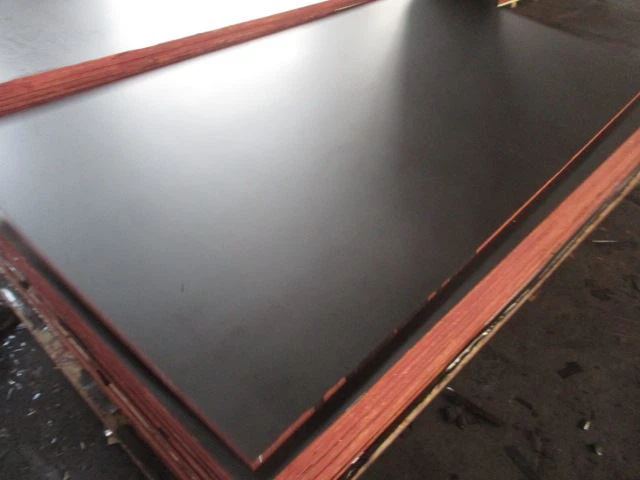

Product Images
