Shuttering Plywood 9mm Phenolic Exterior Plywood For Concrete Form use Board is a high-quality hardwood plywood covered with phenolic resin-treated film that turns into a protective film during production.

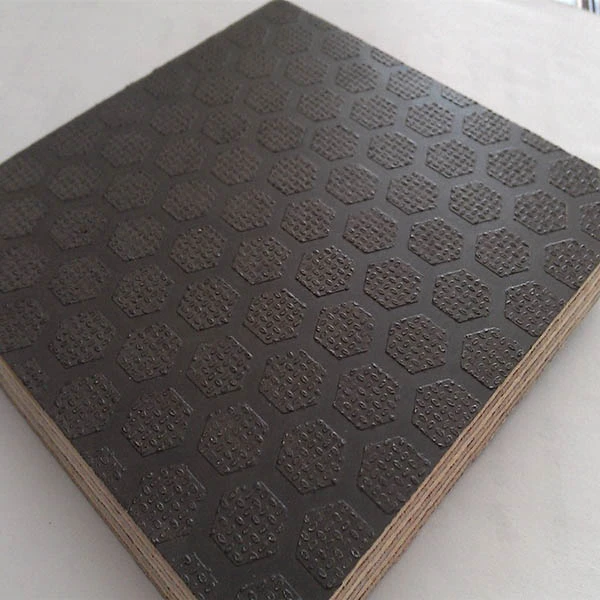

Comes with smooth or mesh surface.
Edges are sealed with water-dispersible acrylic paint.
This type of plywood is widely used in the construction industry and trailer floorproduction. It is easy to mount and use.
Ulink 9mm film faced plywood for strong, stable, concrete formwork
| Size(Mm) | 1200X2400,1220X2440,1250X2500,1500X2500 |
| Thickness(Mm) | 6.5- 35 |
| Length&Width Tolerance | +/-2mm |
| Number Of Layers | From 5 Up To 21 Depending On Thickness |
| Color Of Surface/Film | Brown Black |
| Processing Of Edges | Waterproof Paint(Other Colours As Requested) |
| Core | Poplar, Hardwood, Birch, Combi, Pine |
| Water Resistance | WBP(Weather And Water-Proof) |
| Mositure Content | 6-14% |
| Certificate | ISO9001 ISO14001 CE CARB |
9mm film faced plywood - Upscale
|
Sr NO. |
Property |
Unit |
Test Method |
Value Of Test |
Result |
|
|
1 |
Moisture Content |
% |
EN 322 |
7.5 |
Check out |
|
|
2 |
Density |
kg/m3 |
EN 323 |
690 |
Check out |
|
|
3 |
Bonding Qality |
Bonding Qality |
Mpa |
EN 314 |
Max: 1.68 Min: 0.81 |
Check out |
|
Damage Rate |
% |
85% |
Check out |
|||
|
4 |
Bending Moudulus of Elasticity |
Longitudinal |
Mpa |
EN 310 |
6997 |
Check out |
|
Lateral |
6090 |
Check out |
||||
|
5 |
Longitudinal |
Mpa |
Mpa |
59 |
Check out |
|
|
Lateral |
43.77 |
Check out |
||||
|
6 |
Cycle Life |
About 15-25 Repeated Using Times Acoording To Projects By Formwork Application |
||||
9mm film faced plywood - Midscale
|
Sr NO. |
Property |
Unit |
Test Method |
Value Of Test |
Result |
|
|
1 |
Moisture Content |
% |
EN 322 |
8 |
Check out |
|
|
2 |
Density |
kg/m3 |
EN 323 |
605 |
Check out |
|
|
3 |
Bonding Qality |
Bonding Qality |
Mpa |
EN 314 |
Max: 1.59 Min: 0.79 |
Check out |
|
Damage Rate |
% |
82% |
Check out |
|||
|
4 |
Bending Moudulus of Elasticity |
Longitudinal |
Mpa |
EN 310 |
6030 |
Check out |
|
Lateral |
5450 |
Check out |
||||
|
5 |
Longitudinal |
Mpa |
Mpa |
57.33 |
Check out |
|
|
Lateral |
44.79 |
Check out |
||||
|
6 |
Cycle Life |
About 12-20 Repeated Using Times Acoording To Projects By Formwork Application |
||||
9mm film faced plywood - Economical
|
Sr NO. |
Property |
Unit |
Test Method |
Value Of Test |
Result |
|
|
1 |
Moisture Content |
% |
EN 322 |
8.4 |
Check out |
|
|
2 |
Density |
kg/m3 |
EN 323 |
550 |
Check out |
|
|
3 |
Bonding Qality |
Bonding Qality |
Mpa |
EN 314 |
Max: 1.40 Min: 0.70 |
Check out |
|
Damage Rate |
% |
74% |
Check out |
|||
|
4 |
Bending Moudulus of Elasticity |
Longitudinal |
Mpa |
EN 310 |
5215 |
Check out |
|
Lateral |
4796 |
Check out |
||||
|
5 |
Longitudinal |
Mpa |
Mpa |
53.55 |
Check out |
|
|
Lateral |
43.68 |
Check out |
||||
|
6 |
Cycle Life |
About 9-15 Repeated Using Times Acoording To Projects By Formwork Application |
||||
Product Advantage
1. Using high-strength phenolic glue,without delamination
2. Imported Finland film covered, beautiful mirror surface
3. Uniform thickness
4. Material and labor saving,
5. Quality and safety, environmental protection
6. Waterproof, Wear-resistant, anti-cracking.
