Critical to construction success, shuttering plywood provides the reliable strength, water resilience, and reusability needed for high-precision concrete forming. It consistently produces structures with uncompromised integrity and architectural-grade finishes. As a key enabler of efficient concrete work, its value spans major commercial ventures to custom residential projects.
| Parameter | Specification |
|---|---|
| Product Name | Film Faced Shuttering Plywood |
| Standard Size | 2440mm x 1220mm (8ft x 4ft) |
| Common Thickness | 12mm, 15mm, 18mm, 21mm (Other thicknesses available upon request) |
| Core Material | Hardwood (Poplar/Eucalyptus) / Birch / Combi Core |
| Surface Finish | Double Phenolic Film (Brown/Black/Red available) |
| Glue Type | WBP (Melamine Urea Formaldehyde - Waterproof) |
| Density | Approx. 680-750 kg/m³ (Varies by core) |
| Moisture Content | 8-14% |
| Film Weight | Typically 120-220 gsm |
| Reuse Cycles | 12-15mm: 10-25+ times; 18-21mm: 20-80+ times (Depends on care & concrete conditions) |
| Edge Sealing | Optional: Sealed with water-resistant paint |
| Certifications | CE Marking, CARB Phase 2 Compliant, FSC® (Optional) |
Why Choose 8x4 Shuttering Plywood?
Consistent Quality: Rigorous quality control ensures reliable performance batch after batch.
Optimized for Reuse: High-grade phenolic film and core construction maximize lifespan.
Superior Concrete Finish: Achieve smooth, architectural-grade concrete surfaces.
Global Standards: Manufactured to meet international specifications for formwork plywood.
Technical Support: Dedicated team to assist with project specifications and logistics.
Competitive Pricing: Excellent value proposition through direct factory sourcing.
Structure
Film faced plywood is structural plywood coated with a phenolic or melamine resin film on one or both sides.
Surface: Phenolic film (brown/black) or melamine (light).
Core: Multi-layered hardwood veneers with waterproof WBP glue.
Thickness: 12mm, 15mm, 18mm, 21mm (common for formwork).

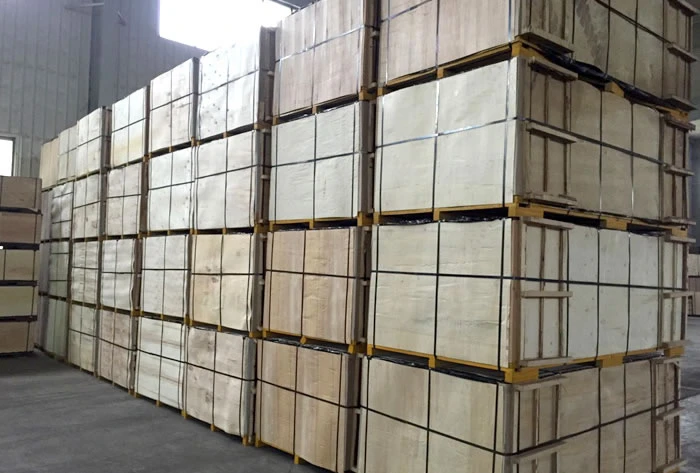

Packing & Shipping
Standard Packing: Bundled on wooden pallets, strapped securely with steel/plastic bands.
Packing Quantity: Varies by thickness. Specific packing details provided per order.
Edge Protection: Corners protected with cardboard or plastic edge guards.
Weather Protection: Optional shrink wrapping or waterproof paper covering available.
Shipping: Efficiently packed for optimal container utilization (FOB, CIF, CFR terms available). Worldwide delivery.
