Engineered for professionals who demand reliability and efficiency, our 18mm Film Faced Plywood is the cornerstone of successful concrete construction. Featuring a tough phenolic resin film bonded to premium wood cores, it delivers exceptional durability, smooth concrete finishes, and unmatched reusability cycle after cycle.
|
Film |
Dynea film, Domestic black and brown film, Imported yellow, red, green film and so on. | |||
|
Size |
1220*2440mm(4'*8') all as requested |
|||
|
Thickness |
9mm, 10mm, 12mm, 15mm, 16mm, 18mm, etc |
|||
|
Core |
Poplar |
|||
|
Glue |
MR, WBP |
|||
|
Moisture |
10%-15% |
|||
|
Reusage Times |
5-8 times(hot press 1 times), 10-20 times(hot press 2 times) |
|||
|
Thickness Tolerence |
±0.5mm |
|||
|
Hot Press Time |
1 times, 2 times |
|||
Products Description
Face and Back:

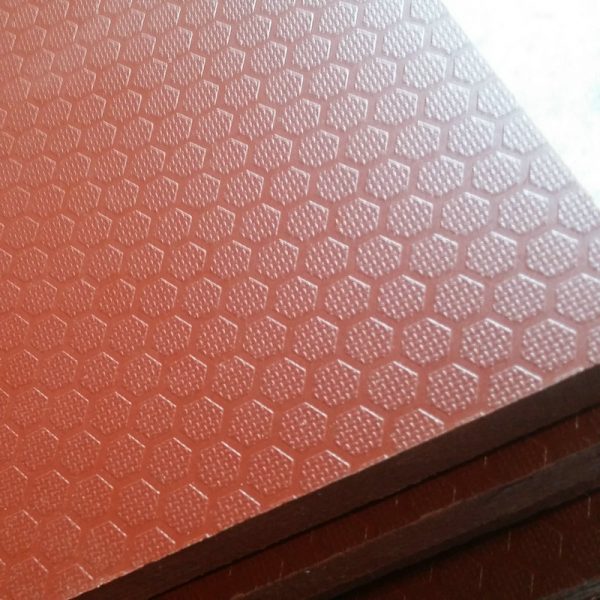

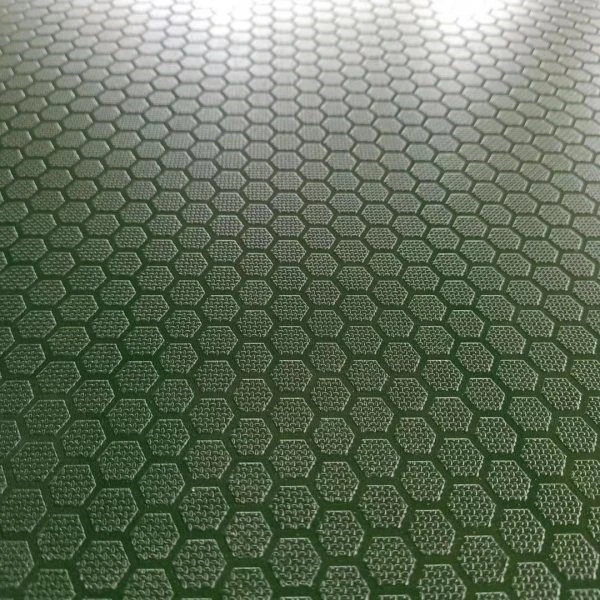

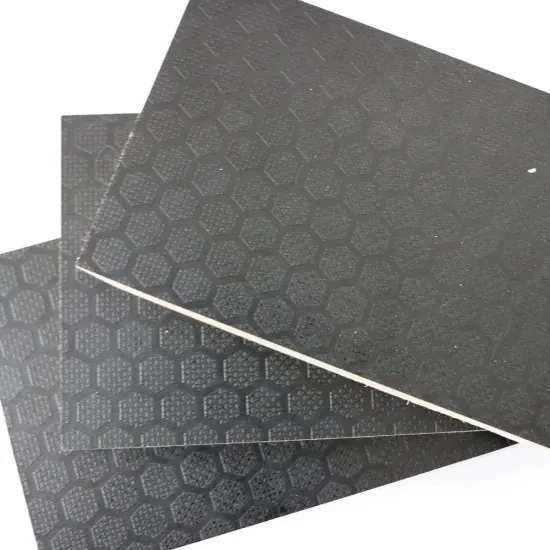

Antislip Textured plywood surface available in five common colors for choose – black, brown, grey, red and blue. Antislip coating density 220g/m2,can be made into single-sided anti-slip or double-sided anti-slip.
Premium Wood Core Options:
Poplar Core: Lightweight, cost-effective, excellent for general construction.
Combi Core (Poplar + Hardwood): Enhanced strength and rigidity, ideal for heavier loads and increased reuse cycles.
Full Hardwood Core (Eucalyptus, Birch, etc.): Maximum strength, stiffness, and longevity for the most demanding, high-reuse applications.
Strural:
Full birch veneers are arranged crosswise according to mechanical properties. Miter joint and hot melt wire connection are adopted to avoid excessive gap and ensure excellent hardness and stability.
Edges:
The edges 4 times sealed with waterproof paint in the factory for minimise moisture penetration.
Bonding:
Deep penetration, locking each layer of veneer. Special custom-made phenolic adhesives cross-bonded weather resistant glueing according to EN 314-2 / class 6.
Structure
Film faced plywood is structural plywood coated with a phenolic or melamine resin film on one or both sides.
Surface: Phenolic film (brown/black) or melamine (light).
Core: Multi-layered hardwood veneers with waterproof WBP glue.
Thickness: 12mm, 15mm, 18mm, 21mm (common for formwork).
Features
- Exceptional Reusability: Achieve significant cost savings over the project lifespan. The durable film and strong core withstand repeated use.
- High Load Bearing Capacity: Designed to withstand the immense pressure of wet concrete without excessive deflection, ensuring structural integrity and dimensional accuracy.
- Waterproof & Weather Resistant: The phenolic film and waterproof glue bonds (WBP - Weather & Boil Proof) prevent delamination and swelling, even in harsh site conditions.
- Easy Handling & Installation: Standard large-format sheets (1220x2440mm / 4'x8' common; other sizes like 1250x2500mm available) optimize coverage and minimize joints. Consistent thickness ensures stability.

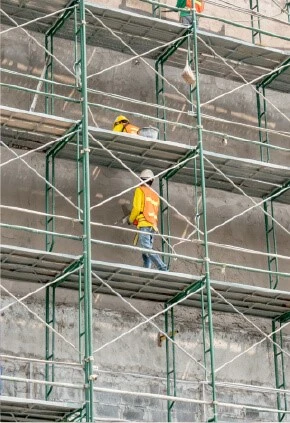

Applications
Products Images
 |
 |
 |
Why Choose US
For your costs and profits
In a competitive market, competition can cut into your profits significantly. So we can either support you by lowering prices or break the competitive landscape with a differentiated new product.
- By streamlining the production process, we can offer top-notch products with lower expenditure.
- We really focus on continuous innovation to ensure every item is of top-notch quality with great potential for business growth.
For your quality
- In our industry, we've carefully picked a number of raw material suppliers. We can trace and guarantee the output of high-quality materials, so you can trust our products are always made with good stuff.
