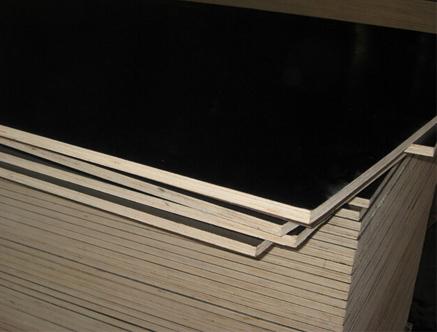

Concrete plywood is a type of engineered wood product specifically designed for use in concrete construction projects. It is made by bonding multiple layers of wood veneers together with strong adhesives. These veneers are typically derived from fast - growing tree species such as poplar, birch, or eucalyptus.
The production process begins with the peeling of logs into thin, flat sheets called veneers. These veneers are then dried to reduce their moisture content to an appropriate level. After that, the veneers are coated with a layer of adhesive, which is usually a waterproof or moisture - resistant type to ensure the durability of the plywood in the often - wet environment of concrete work. The coated veneers are stacked in a specific pattern, usually with the grain direction of adjacent layers perpendicular to each other. This cross - laminated structure significantly enhances the strength, stability, and dimensional accuracy of the plywood. Once stacked, the layers are pressed together under high pressure and heat to cure the adhesive and firmly bond the veneers into a single, rigid panel.
The resulting concrete plywood is a flat, rectangular board that serves as a formwork material. Formwork is a temporary structure used to hold wet concrete in place while it sets and hardens into the desired shape. Concrete plywood provides a smooth and stable surface against which the concrete can be poured, ensuring that the final concrete structure has a clean, even finish. It can be easily cut, drilled, and shaped on - site to fit the specific requirements of different construction projects, whether it's for building walls, floors, columns, or other concrete elements.
Characteristics of Concrete Plywood
1. High Strength and Stiffness
Concrete plywood is engineered to have high strength and stiffness. Thanks to its cross - laminated structure, where the grain directions of adjacent veneer layers are perpendicular, it exhibits remarkable stiffness perpendicular to the grain direction of the surface layers. This unique construction enables it to withstand the significant pressure and weight exerted during the concrete pouring process. For example, when large - volume concrete is being poured for the construction of a multi - story building's foundation, the concrete plywood formwork can maintain its shape and structural integrity, preventing any deformation or collapse. The high strength also allows it to support the weight of the wet concrete until it sets and hardens, ensuring the successful formation of the concrete structure.
2. Good Flexibility
Despite its strength, concrete plywood also has a certain degree of flexibility. This flexibility is a valuable property as it allows the plywood to be bent to some extent. This characteristic makes it suitable for use in the construction of concrete structures with special shapes, such as curved columns, arches, or circular - shaped elements. In the construction of an architectural landmark with a unique, curved facade made of concrete, the concrete plywood can be carefully bent and shaped on - site to match the design requirements. This not only simplifies the construction process but also enables the creation of aesthetically pleasing and architecturally innovative concrete structures that would be difficult to achieve with more rigid formwork materials.
3. Durability
Durability is another key characteristic of concrete plywood. It is designed to withstand the harsh conditions often associated with concrete construction, including exposure to moisture, chemicals in the concrete mix, and mechanical stress. The use of waterproof or moisture - resistant adhesives during the manufacturing process contributes to its durability. Moreover, concrete plywood can be reused multiple times. In a large - scale construction project, such as the building of a commercial complex, the same sheets of concrete plywood can be used for different phases of the construction, for example, first for the construction of the lower - level floors and then for the upper - level floors. This reusability significantly reduces the overall construction cost by minimizing the need to purchase new formwork materials for each stage of the project.
4. Smooth Surface
The surface of concrete plywood is smooth, which is highly beneficial for concrete construction. When concrete is poured against this smooth surface, the resulting concrete structure has a flat and even finish. This smooth finish reduces the amount of post - construction surface treatment work required. For instance, in the construction of a high - rise building's exterior walls, the smooth surface of the concrete plywood ensures that the concrete surface is free from major imperfections, eliminating the need for extensive sanding, patching, or other finishing operations. This not only saves time but also reduces the overall cost associated with achieving a high - quality concrete surface appearance.
Usage Methods of Concrete Plywood
1. Preparation Before Use
Before using concrete plywood, a careful inspection is essential. Check the plywood sheets for any signs of damage, such as cracks, splits, or delamination. Cracks can compromise the structural integrity of the formwork during the concrete - pouring process, leading to potential failures. Delamination, where the veneer layers start to separate, can also cause problems as it reduces the overall strength of the plywood. If any damaged areas are found, they should be repaired or the sheet should be replaced.
Clean the surface of the plywood thoroughly to remove any dust, dirt, debris, or other contaminants. Even a small amount of dirt on the surface can affect the adhesion between the concrete and the plywood. This, in turn, may result in a rough or uneven finish on the concrete surface. Use a broom, a brush, or a vacuum cleaner to remove loose particles. For stubborn stains or residues, a mild detergent solution can be used, followed by a thorough rinse with clean water. Ensure that the surface is completely dry before proceeding with the installation to prevent the formation of water - related issues like mold growth or reduced adhesive strength.
2. Installation Process
When it comes to the installation of concrete plywood, proper splicing and fastening methods are crucial. For splicing, the plywood sheets should be joined together as tightly as possible. In some cases, tongue - and - groove joints can be used to ensure a seamless connection between the sheets. This type of joint not only improves the tightness of the connection but also helps to prevent concrete leakage during the pouring process.
To fix the plywood in place, various methods can be employed. Nails are a common choice for small - scale projects or when working with lightweight concrete. However, it's important to ensure that the nails are long enough to penetrate the supporting structure adequately. Screws offer a more secure fastening option as they provide better resistance to pulling forces. They are often used in larger construction projects where the formwork needs to withstand significant pressure.
For more complex or large - scale applications, specialized clamps can be used. These clamps are designed to hold the plywood firmly in place, especially in situations where a large number of sheets need to be joined together. When using nails, screws, or clamps, make sure that the plywood is firmly attached to the supporting framework. The supporting framework should be strong and stable enough to bear the weight of the wet concrete and any additional loads that may be imposed during the construction process.
3. Demolition and Maintenance
Once the concrete has fully hardened and set, it's time to remove the concrete plywood formwork. The demolition process should be carried out carefully to avoid damaging the concrete structure or the plywood itself. Start by removing the fasteners, such as nails or screws, in a systematic manner. If using a tool to pry the plywood away from the concrete, be gentle to prevent chipping or scratching the concrete surface.
After the plywood is removed, it should be cleaned immediately. Use water and a mild detergent to remove any remaining concrete residue, dirt, or other contaminants. A stiff - bristle brush can be used to scrub the surface gently. Once cleaned, the plywood should be dried thoroughly. Moisture left on the plywood can lead to the growth of mold, mildew, or cause the wood to warp over time.
Proper storage is also important for maintaining the quality of the concrete plywood. Store the plywood in a dry, well - ventilated area. Avoid exposing it to direct sunlight or extreme temperatures, as these can cause the wood to deteriorate. Stack the plywood sheets neatly, with spacers between them to allow air circulation. This helps to prevent the formation of moisture - related issues and ensures that the plywood remains in good condition for future use.
Concrete plywood is a specialized engineered wood product that plays a crucial role in the construction industry. Its definition lies in being composed of multiple layers of veneers bonded together with waterproof adhesives, specifically designed for use as formwork in concrete construction.
