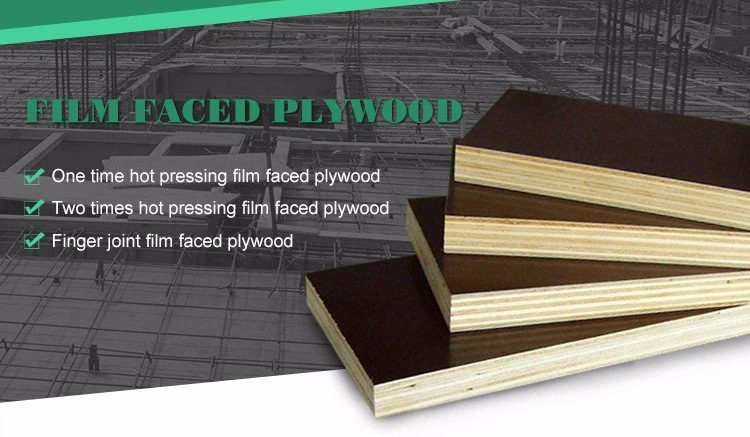

F17 Grade Plywood is a type of film faced plywood that is used in Australia. The F17 Grade Plywood is the number one in world building industry. This standard is benchmark standards. It should have a stress grading of F17. The panel sheet should be made with hardwood and A-Bond, which is good phenol glue for the bonding.
Usage:Construction Formwork
Specification:1200*1800/1200*2400mm
Material:Poplar/Exculyptus.Combi core
Thickness:17mm
Glue:WBP-Real penolic
Mositure Content:10%-14%
Package:Standard export packing
Press times:One time/Two times
Surface
Film Facing Does Not Absorb Water.
And It Does Not Swell Or Shrink.
The Robust, Smooth Surface Guarantees First-class Concrete Quality Even After Many Uses.
Structure
Manufactured From High-grade Full hardwood Veneers Bonded Together With Super E0 Waterproof Adhesive, Which Has Superior Bond Strength.
The Oblique Jiont And Hot-melt Splicing Technology Are Used To Avoid Every Possible Gap.
To Ensure Excellent Hardness And Stability
Bonding
Super E0 Waterproof Adhesive. If Put In Boiling Water For 72 Hours, It Is Still Glue-sticking And Non Deformed.
Sealing
The Edges 4 Times Sealed With Waterproof Paint In The Factory For Minimise Moisture Penetration.
| Stress Grade | Sheet Size (mm) | Thicknesses (mm) | Weight (kg/sheet) | Parallel to face grain | Perpendicular to face grain | Core Materials | Packing Unit (sheets) | ||
| Momentof inertia | Sectionmodulus | Momentof inertia | Sectionmodulus | ||||||
| I(mm4/mm) | Z(mm3/mm) | I(mm4/mm) | Z(mm3/mm) | ||||||
| F17 | 1800×1200 | 12, 17, 19 & 25 | 24 | 240.0 | 27.6 | 178.0 | 22.9 | Full hardwood | 40 / 43 |
| F17 | 2400×1200 | 12, 17, 19 & 25 | 32 | 240.0 | 27.6 | 178.0 | 22.9 | Full hardwood | 40 / 43 |
Prodcut Image
