Specifications
Phenolic film faced plywood is made by pressing paper impregnated with phenolic resin (called phenolic adhesive film) onto the surface of the plywood. This surface treatment not only provides moisture protection for the sheet, but also significantly enhances its resistance to wear. In addition, the edges of the formwork plywood are treated with waterproof acrylic paint to further extend its service life.
| Size | 1220x2440mm, 1250x2500mm, 1200x1800mm, 1200x2400mm |
| Thickness | 9mm, 12mm, 15mm, 17mm, 18mm, 21mm |
| Shuttering Board Standards | GB/T17656-2018, EN-13986, AS/NZ 2269, AS 6669 |
| Core Type | Finger Joint Poplar, Combi, Hardwood |
| Film Type | Chinese Black Film, Brown, Red, Dynea Phenolic Film Face, Green PP Plastic |
| Glue Type | WBP (Weather and Water Proof, Exterior, Marine Glue, Phenolic A-bond) |
| Moisture Content | No More Than 14% |
| Bending Strength | Longitudinal Grain 54MPA, Cross Grain 39MPA |
Phenolic Resin Faced Non-Slip Plywoods:Exterior birch plywood core faced with a hard-wearing phenolic resin, these slip-resistant plywoods offer a variety of different patterns for appearance and in some cases particular end-uses. |
|
|
Carat Pattern - Phenolic Resin This non-slip plywood has a unique raised design consisting of thousands of tiny diamond shapes that effectively distribute the point load, thereby reducing the compressive stress on the surface veneer and increasing the shear strength of the panel, allowing it to withstand heavier point loads. |
|
|
|

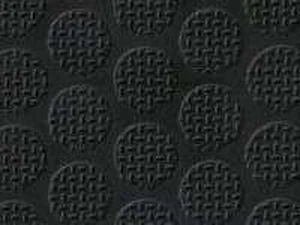

Crown Pattern - Phenolic ResinA 10mm diameter slip resistant raised circular pattern with each instance surrounded by six others in a repeating hexagonal configuration The raised slip-resistant pattern maintains its anti-slip properties under a wide range of climatic conditions and is therefore an ideal material for demanding flooring applications |

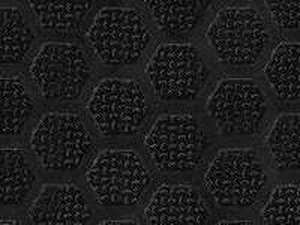

Hexagon Pattern - Phenolic ResinA hexagonal slip resistant raised area of approximately 10mm in diameter surrounded by six others in a repeating hexagonal configuration, with approx 2mm margin between it and its nearest neighbours. |
|
|
|

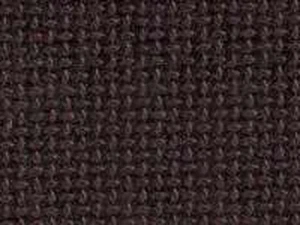

Mesh Pattern - Phenolic Resin
The simplest & most widely-known pattern of slip-resistant plywoods, this panel is widely used where a slip-resistant finish is required at a competitive price. Can also be supplied on pine or other core for lower cost where the end-use is a temporary or one-off installation |
Application
The application of this our antislip plywood is mainly used : antislip floor and wall in car trailer/container body and also some other special occasions like stairs etc.
Our Advantages
1) Stronger, straighter, and more uniform.
2) Made in a factory under controlled specifications and reduce onsite labor.
3) Fumigation free
4) Excellent in Anti-Slip Control beneficial for construction safety
5) The film surface withstands abrasion. It is moisture resistant and can tolerate commonly used chemicals as well as diluted acids and alkalis. The surface is easy to clean with water and steam. Moisture absorption is minimum.
